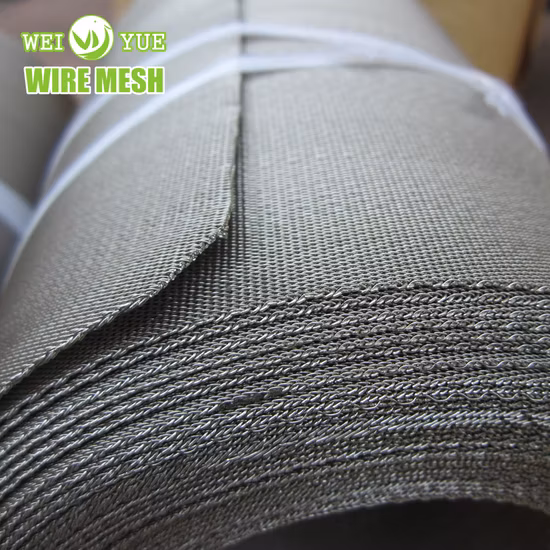

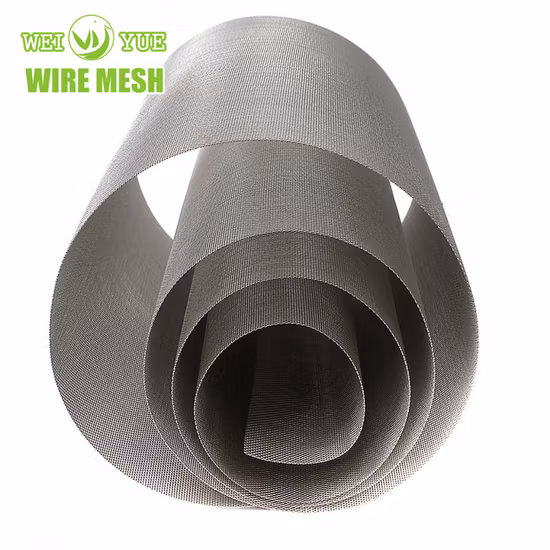

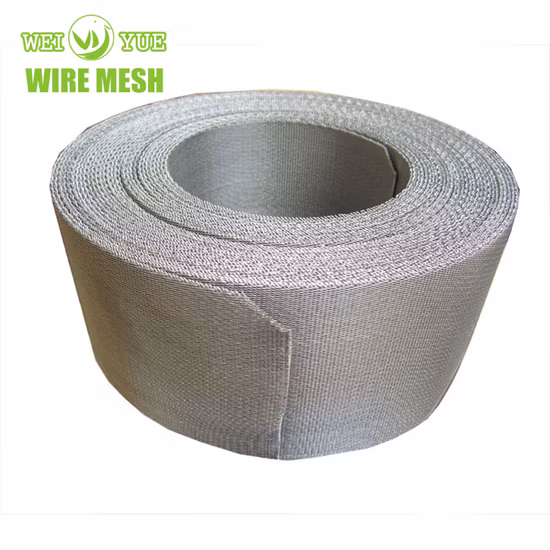

152X24 Stainless Steel Metal Wire Mesh Plastic Melt Belt Filter Extruder Screen

Basic Info.

Model NO.	HeBei WeiYue Wire Mesh
Wire Mesh Width	0.5m
Technique	Woven
Nickels	8%
Certification	ISO9001
Roll Size	115m, 130m
Wire Grade	302 304 304L 316 316L etc
Mesh	1-200
Others	According to Your Requirement
Diameter	0.02-2.0mm
Length of Roll	50m
Transport Package	Carton or Wooden Box
Specification	4mesh, 6mesh, 8mesh, 100mesh, 400mesh.
Trademark	weiyue
Origin	China
HS Code	73144000
Production Capacity	1000m2 Per Day

Product Description

Hebei Weiyue Wire Mesh Products Co., Ltd. manufactures and sells primary wire mesh and wire products. It is located in the "Home of Wire Mesh" in Anping County, China.

152X24 Stainless Steel Metal Wire Mesh Plastic Melt Belt Filter Extruder Screen

Product Description

Materials	AISI304,304L,316,316l,302,430,309,310 stainless steel mesh, galvanized mesh, copper mesh, dense mesh, punched mesh, etc.
Filter Diameter	5 mm - 600 mm
Wire Diameter	0.015-5.00mm
Weave types	Plain Weave ,Twill Weave,Dutch Weave, Reverse Dutch Weave Type.
The shape	rectangle, square, circle, ellipse, ring, rectangle, hat, waist, and profile.
structure	single layer, double layer, multi-layer.
Processing technology	double or triple layer spot welding, solder joints generally range from 4 to 10, can also be based on customer requirements to do single layer and double layer edge.
Edging materials	stainless steel, copper, galvanized, aluminum, rubber and so on.
Mesh Count	Plain weave can be woven up to 400 mesh.Twill weave can be woven up to 635 mesh.Dutch weave can be woven up to 3200 mesh.

Product Feature
1.fine workmanship and smooth surface2.high hardness and no deformation3.high temperature resistance and corrosion resistance4.flexible mesh5.Excellent filtration performance and good filtration precision 6.Strong tensile and abrasion resistance
Applications
1. Plastic extruder2. Screening under acid and alkali environmental conditions3. Mud mesh in the petroleum industry4. Screen in the chemical fiber industry5. Pickling mesh in industryspecification

Mesh	Wire Diameter (mm)	Thickness (mm)	Width (cm)
45x15	0.45x0.6	1.75	8-85
72x15	0.45x0.55	1.7	8-85
120x16	0.35x0.45	1.36	8-85
132x17	0.3x0.45	1.3	8-85
152x24	0.3x0.40	1.2	8-85
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customer's requirements

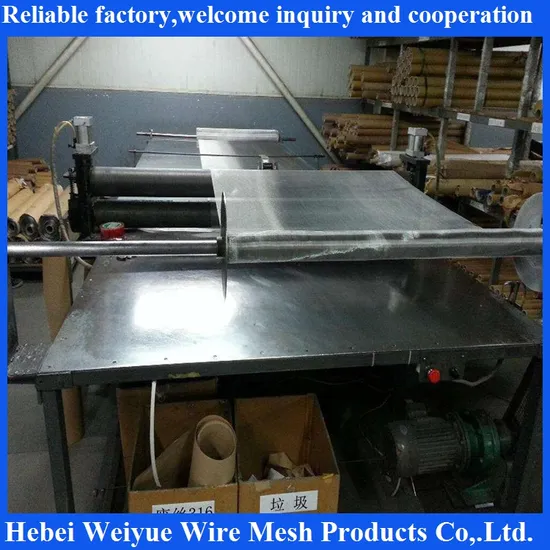

Production Package And Workshop
